Rotate Text in SSRS

Rotate-text-report_thumb2

Sometimes we get pampered so much by modern technology that we tend to raise the bar of necessity towards the fringes of luxury. 10 years back, a mobile phone was a luxury in my native place. Today, even school children carry one along with them and most of them take it as granted. Similarly, I had been so used to the rich features of SSRS 2008 R2 that I often forget that this feature never existed in the previous versions. Take this case where one of the forum users had asked me how to rotate text in the matrix column header of a SSRS report as shown below.

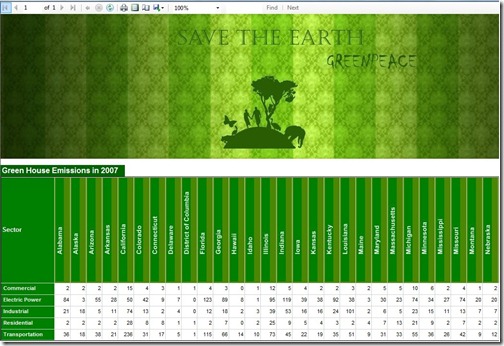

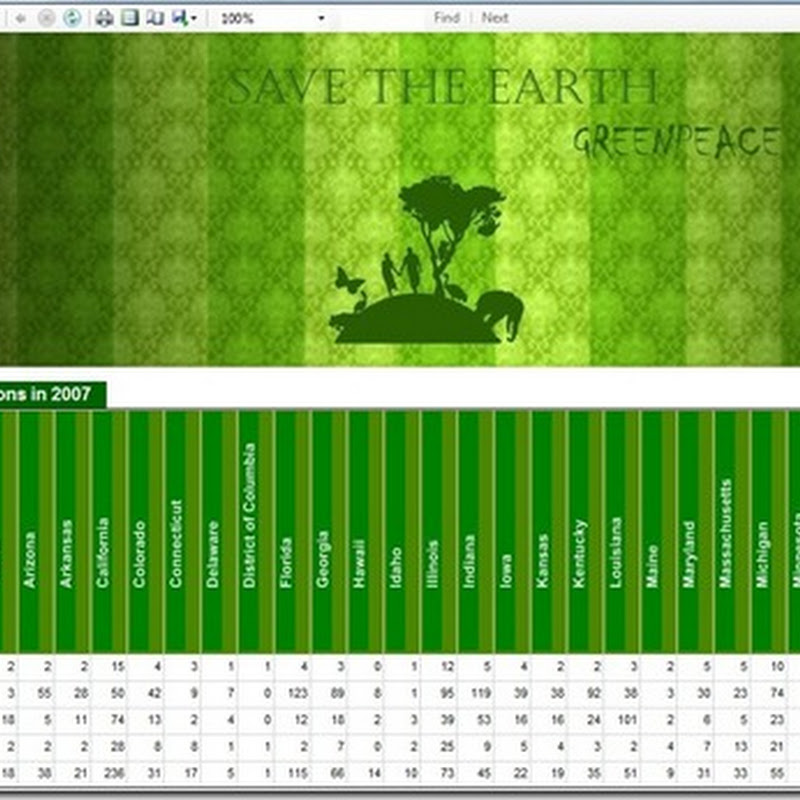

Rotate text report

Being used to SSRS 2008 R2, I thought rotating text to 270° was a pretty easy solution but I conveniently forgot that this feature was not available directly in SSRS 2008 and below versions. So I decided to blog down the solution for both SSRS 2008 R2 and other versions. For detailing the solution, I have already created a dataset which will give me the greenhouse emissions of the states in the USA by sector. The requirement is to display all the states in the column header and the optimal way would be to rotate it and display vertically.

(I) SSRS 2008 R2

1) Select the column whose text you want to rotate and press F4 to bring up the properties panel.

Select column to rotate text and press F4 to open properties panel

2) Select the WritingMode property and select the value as Rotate270. (The Vertical selection will rotate the text by 90° instead of 270°)

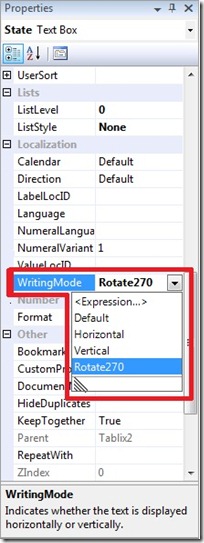

SSRS WritingMode property

3) Now you can preview the report and the header text should be rotated by 270°.

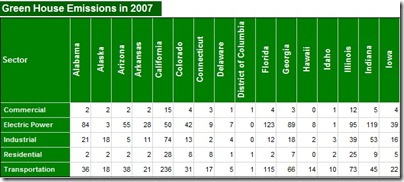

Report with rotated text header in SSRS 2008 R2

You can also change the horizontal and vertical alignment as needed by selecting the appropriate values in the TextAlign and VerticalAlign properties.

(II) SSRS 2008 and 2005

Since this option is not available out of the box for older versions, we will have to use custom code in our report.

1) Open the report properties and paste the following custom code in the Code tab of report properties. (Note : I am in no way a VB.net coding expert and the following piece of code was collected by me quite some years ago and have lost track of it’s origins; hence could not attribute it to the original author. If you are or know the author, please let me know so that I can link it to you/the original post. I have also made some modifications and if any of you guys feel that it can be improved, please paste the improved code in the comments sections so that it can be used by others)

Function LoadImage(ByVal sImageText as String,ByVal sImageTextMax as String)
sImageTextMax= sImageTextMax.PadRight(40)
Dim iFontSize As Integer = 10 ‘//Change this as needed
Dim bmpImage As New Drawing.Bitmap(1, 1)
Dim iWidth As Integer = 0
Dim iHeight As Integer = 0


'// Create the Font object for the image text drawing.
Dim MyFont As New Drawing.Font("Arial", iFontSize, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point)
'// Create a graphics object to measure the text's width and height.
'Graphics(MyGraphics = Graphics.FromImage(bmpImage))
Dim MyGraphics As Drawing.Graphics = Drawing.Graphics.FromImage(bmpImage)
'// This is where the bitmap size is determined.
iWidth = MyGraphics.MeasureString(sImageTextMax, MyFont).Width
iHeight = MyGraphics.MeasureString(sImageTextMax, MyFont).Height
'// Create the bmpImage again with the correct size for the text and font.
'bmpImage = New Drawing.Bitmap(bmpImage, New Drawing.Size(iWidth, iHeight))
bmpImage = New Drawing.Bitmap(bmpImage, New Drawing.Size(iHeight, iWidth))
'// Add the colors to the new bitmap.
MyGraphics = Drawing.Graphics.FromImage(bmpImage)
MyGraphics.Clear(Drawing.Color.Green)
MyGraphics.TextRenderingHint = Drawing.Text.TextRenderingHint.AntiAlias
MyGraphics.TranslateTransform(0, iWidth)
MyGraphics.RotateTransform(270)

MyGraphics.DrawString(sImageText, MyFont, New Drawing.SolidBrush(Drawing.Color.White), 0, 0)
MyGraphics.Flush()
Dim stream As IO.MemoryStream = New IO.MemoryStream
Dim bitmapBytes As Byte()
'Create bitmap
bmpImage.Save(stream, System.Drawing.Imaging.ImageFormat.Jpeg)
bitmapBytes = stream.ToArray
stream.Close()
bmpImage.Dispose()
Return bitmapBytes
End FunctionThe above code converts Now your code window should look like this

Custom code

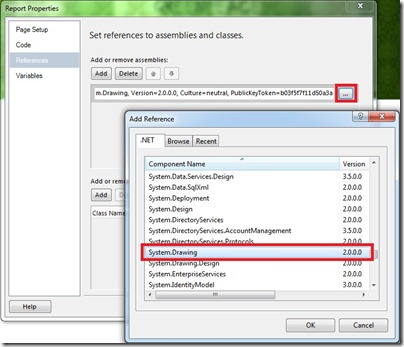

2) Go to the References tab and add a reference to the System.Drawing assembly.
Adding reference to Drawing assembly

3) Click OK to save and close the report properties. Then drag and drop an image item from the toolbox to the column header which will popup the Image Properties window as shown below.

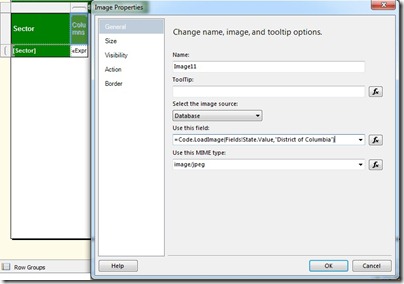

Adding image to column header

Make sure that the
(a) image source is set as Database,
(b) MIME type is set as image/jpeg
(c) Use this field has the following expression
=Code.LoadImage(Fields!State.Value,”District of Columbia”)
In the above expression, Fields!State.Value is the field value whose text should be rotated (in this case – State). It can be substituted with any string value also. The second parameter is ideally for the longest string in the values for Fields!State.Value and is just used so that all the text values start at the same position and for general aligning purposes. In the above example, I have directly hardcoded it as “District of Columbia” but you can change it such that the field with the maximum length is passed.

4) Click on OK and then preview the report. Now you should be able to see the report as shown below

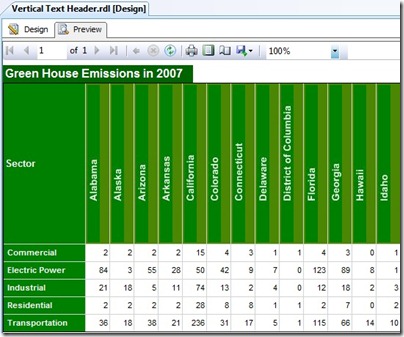

Rotated text with SSRS 2008, 2005 and below versions

In case you are not getting the report properly, make sure that
(a) Image properties should be set as Original Size

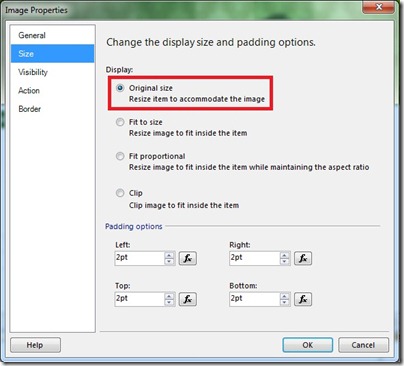

Image property set as Original size
(b) there should be a grouping on the column where the image is placed by the Field that you want to group by, else only one value would be displayed.

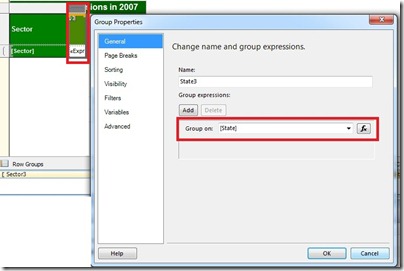

Group by State field

I am sure there is more scope for improvement in the VB.NET code like adding a code such that the text can be left, right or centre aligned, reducing the padding in the left hand side, etc. Feel free to modify and improve the codeNerd smile.
